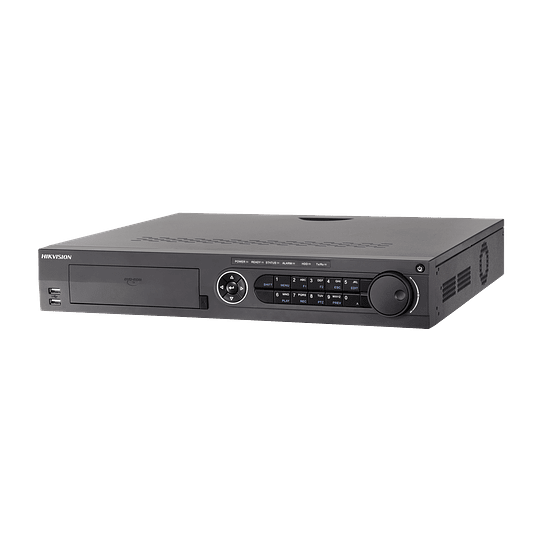

DVR 32CH TURBO 8MP CON ANALITICA DE VIDEO
DVR 32CH TURBO 8MP 4BAHIA/10TB H.265+ ANALITICAS HDMI 4K METAL HIKVISION
Marca: HIKVISION
Modelo: DS-7332HUHI-K4
Descripción
Especificaciones
Información adicional
Descripción
- 32 channels and 4 HDDs 1.5U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 48 network cameras can be connected
- Supports POS triggered recording and POS information overlay
- Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks
Especificaciones
- Analog Video Input
- Analog Video Input32-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
- AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI1/VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
- Synchronous Playback16-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame RateMain stream:,8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/CIF@25fps (P)/30fps (N),
- Video Bit Rate32 Kbps to 6 Mbps
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bit Rate64 Kbps
- Video And Audio
- IP Video Input16-ch (up to 48-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
- Network
- Remote Connections128
- Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
- Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA4 SATA interfaces
- CapacityUp to 10 TB capacity for each disk
- Alarm In/Out16/4
- USB InterfaceFront panel: 2 × USB 2.0,Rear panel: 1 × USB 3.0,
- Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
- ESATASupport
- General
- Power Supply100 to 240 VAC
- Consumption (Without HDD)≤ 74 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
Información adicional
- Dimensions (W × D × H)440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
- Weights (Without HDD)≤ 7 kg (15.4 lb)
